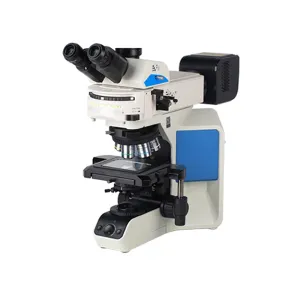

Upright Metallurgical Microscope MMX430

According to different applications in industry and materials science, microscopes for various applications such as reflection microscopes, transmission and reflection microscopes, bright dark field microscopes, polarizing microscopes, etc. can be modularized and combined.

Get Quotes Now!

Inquiry

Description
Parameter Specifications

Feature

1. Adopting a three speed and three eye beam splitter tube to meet the requirements of simultaneous visual and camera observation. Adjustable eyepiece tilt angle ensures the most comfortable posture for microscopic operations, relieving muscle tension or discomfort caused by prolonged work.

2. Equipped with a semi complex gold phase bright field objective lens, it ensures precise color reproduction. For various usage requirements, high-resolution, long working distance bright/dark field flat field objectives can be selected.

3. The upper light source adopts a long-life LED light source (halogen lamp optional), and the lower light source adopts a warm and true color LED light source design, which can be combined with the objective lens turntable to manage the light intensity.

By setting the brightness level in advance, when switching between different magnification objectives, the light intensity remains the same within the field of view, eliminating the need for manual intensity adjustment for each objective, which is both labor-saving and effective in avoiding eye fatigue.

Item	MMX430
Eyepiece	Widefield 10X/22, Diopter Adjustable
Eyepiece Tube	Hinged Trinocular Viewing Tube, High Eyepoint, 30° Inclined, Interpupillary Distance Adjustment 50-75mm
Objective Lens	Semi-Apochromat Metallurgical Brightfield Objective PlanFluor EPI 5X/0.15 Semi-Apochromat Metallurgical Brightfield Objective PlanFluor EPI 10X/0.3 Semi-Apochromat Metallurgical Brightfield Objective PlanFluor EPI 20X/0.45 Semi-Apochromat Metallurgical Brightfield Objective PlanFluor EPI 50X/0.8 Semi-Apochromat Metallurgical Brightfield Objective PlanFluor EPI 100X/0.9 (Optional)	Metallurgical Brightfield/Darkfield Objective N-MPFN 5X/0.15 (Optional) Metallurgical Brightfield/Darkfield Objective N-MPFN 10X/0.3 (Optional) Metallurgical Brightfield/Darkfield Objective N-MPFN 20X/0.45 (Optional) Metallurgical Brightfield/Darkfield Objective N-MPFN 50X/0.8 (Optional) Metallurgical Brightfield/Darkfield Objective N-MPFN 100X/0.9 (Optional)
Brightfield Illumination	Warm White LED Illuminator
Episcopic Köhler Illumination System	Broad Spectrum High-Power LED Light Source MG-100 MG-100 Power Control Box Episcopic Illuminator RE-43 (6-position Turret) Brightfield Excitation Filter Cube I (Without Intensity Attenuation) Simple Polarizing Attachment (Polarizer) Simple Polarizing Attachment (Analyzer)
Nosepiece	5-hole Nosepiece
Condenser Lens	Abbe Condenser, NA 1.1
