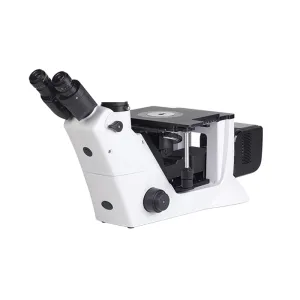

Inverted Metallurgical Microscope MIM530

1.Mature infinite optical system. 2.High imaging quality LED backlighting. 3.Ultra long lifetime full spectrum white light. 4.Stable color temperature can achieve bright field and polarized observation, suitable for observing large-sized metal samples.

Get Quotes Now!

Inquiry

Description
Parameter Specifications

Feature

1. Mature infinite optical system.

2. High imaging quality LED backlighting.

3. Ultra long lifetime full spectrum white light.

4. Stable color temperature can achieve bright field and Polarized observation, suitable for observing large-sized metal samples.

Item	MIM530
Main Unit Frame	200mm infinity-corrected optical system, with ECO motion-sensing auto-shutoff and voice prompt system
Eyepiece	WF10X/22 plan eyepiece, high eyepoint, diopter adjustable
Eyepiece Tube	Fixed binocular tube, 45° inclination; Interpupillary distance 50-75mm; Light path: Eyepiece/Camera port = 100/0 : 0/100
Objective Lens	Semi-Apochromat Metallurgical Brightfield Objective PlanFluor EPI 5x/0.15, WD: 20mm Semi-Apochromat Metallurgical Brightfield Objective PlanFluor EPI 10x/0.3, WD: 11mm Semi-Apochromat Metallurgical Brightfield Objective PlanFluor EPI 20x/0.45, WD: 3mm Semi-Apochromat Metallurgical Brightfield Objective PlanFluor EPI 50x/0.8, WD: 1mm
Nosepiece	5-hole inward-positioning nosepiece, with ball bearing mechanism and anti-fungus treatment
Stage	XY metallurgical stage, with specimen plate
Focusing Mechanism	Coaxial coarse and fine focusing, with limit and lock mechanisms, low-position coaxial focusing knobs, fine adjustment graduation: 2µm
Episcopic Illumination System	3W full-spectrum white LED, continuously adjustable intensity; With polarizing attachment for Polarized light observation, equipped with aperture and field diaphragms, and filter slot
